A heat exchanger is an energy-saving device that transfers heat between materials at two or more fluids at different temperatures. It transfers heat from a higher temperature fluid to a lower temperature fluid, allowing the fluid temperature to reach the flow. Specified indicators to meet the needs of process conditions, but also one of the main equipment to improve energy efficiency.
| Specifications | |
|---|---|
| Name | U shape copper tube small condenser coil L shaped air cooled condenser for air conditioner |
| Tube | Copper, Stainless steel, Aluminium, Hot deep carbon steel, Titanium |
| 7 mm, 5/16", 3/8", 12 mm, 1/2", 5/8", 20mm, 25mm | |
| Fin | Aluminum, Copper, Stainless steel, Hot deep carbon steel, Titanium |
| Window fin, Wave fin, Corrugated fin, Flat fin | |
| Casing | Thick. 1 – 3 mm: Galvanized steel, Aluminium, Stainless steel, Copper, Brass |
| Casing Style | End plates with or without collets |
| Various design of side plates | |
| Fan plates (Galvanized steel and Aluminium up to 1,5 mm) with pressed collar for fan (16 possible diameters) | |
We make tubes of different diameters, with a greater number of thicknesses and different materials such as copper, stainless steel and cupro-nickel. The tube expansion, during the flaring phase, allows a perfect contact between the tubes and the fins and as a consequence it assures efficient thermal exchange.

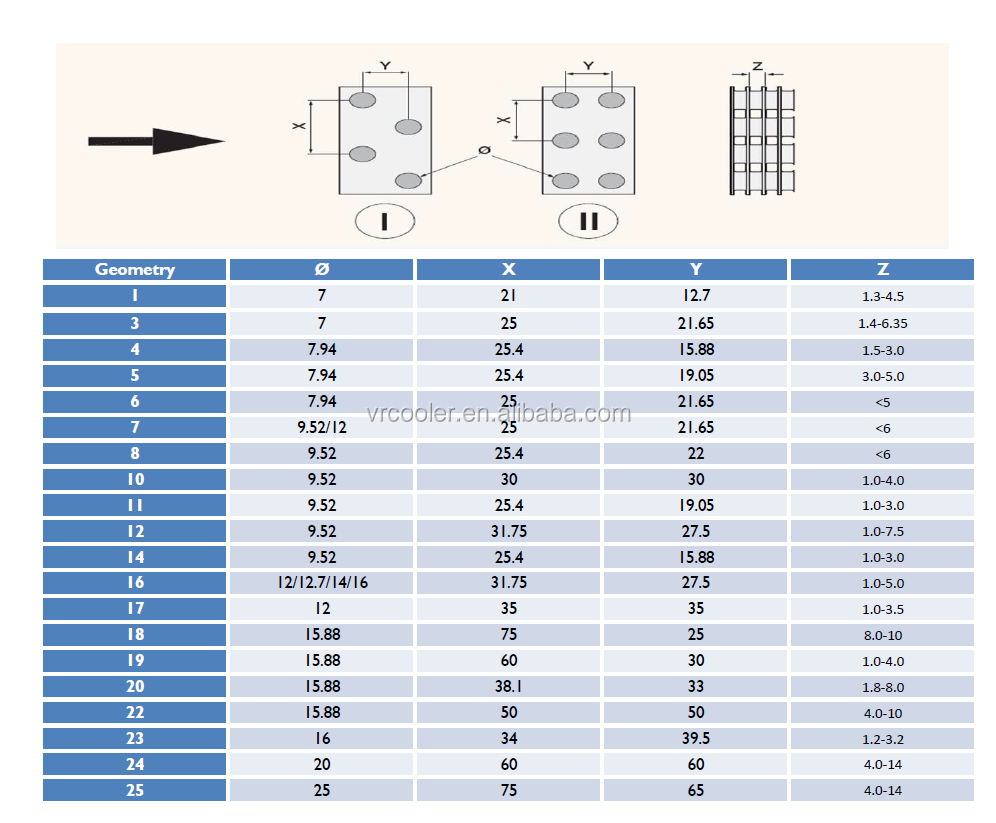

The fins, made of aluminium, prevarnished aluminium or copper, are pressed by means of a particular ondulation that increases the thermal exchange between the air and the fin reducing the load losses on the air side and encouraging at the same time the flow of condensation or defrosting water. The fins can also be made from 316L stainless steel for installations where the thermal exchange is in aggressive environments such as the food sector or exchangers used in salty environments. The main geometries, achievable according to the chosen material, are reported following below; besides, according to the application chosen by the customer and to the thickness of the requested strap, it will be possible to make a major or minor pitch between the fins.

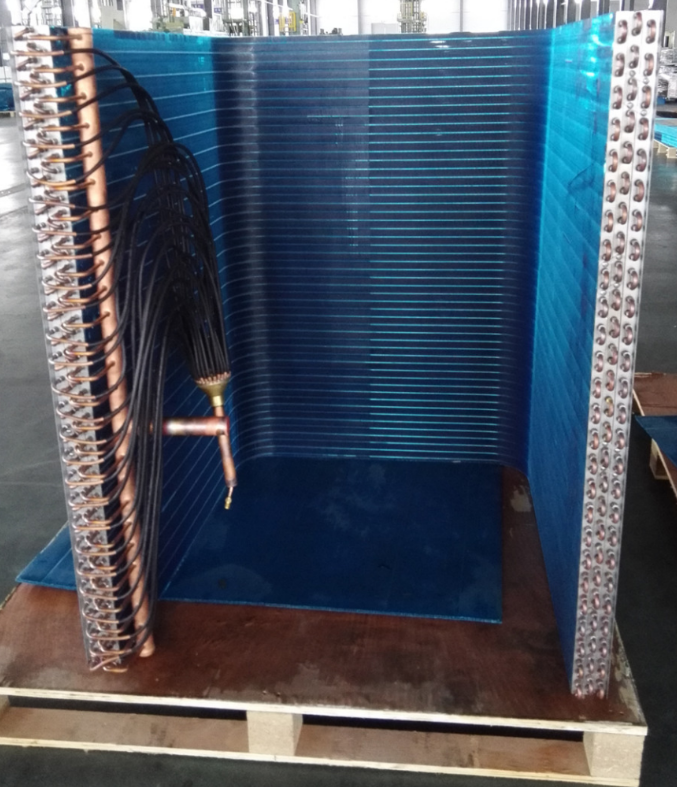

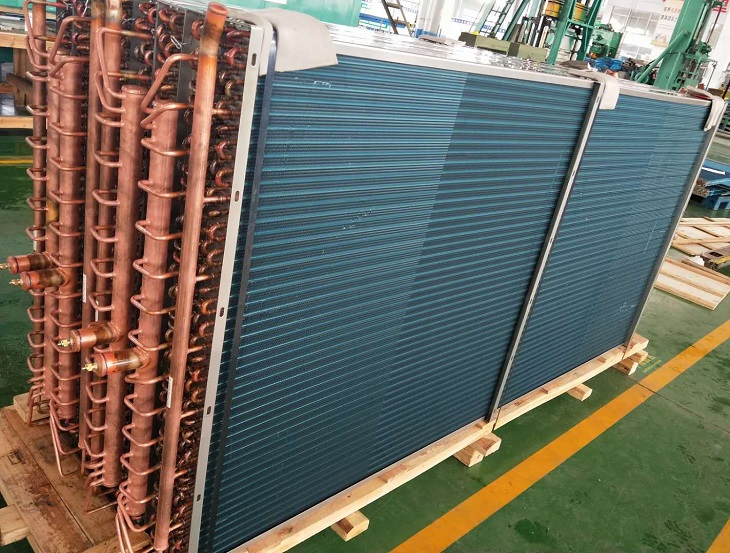

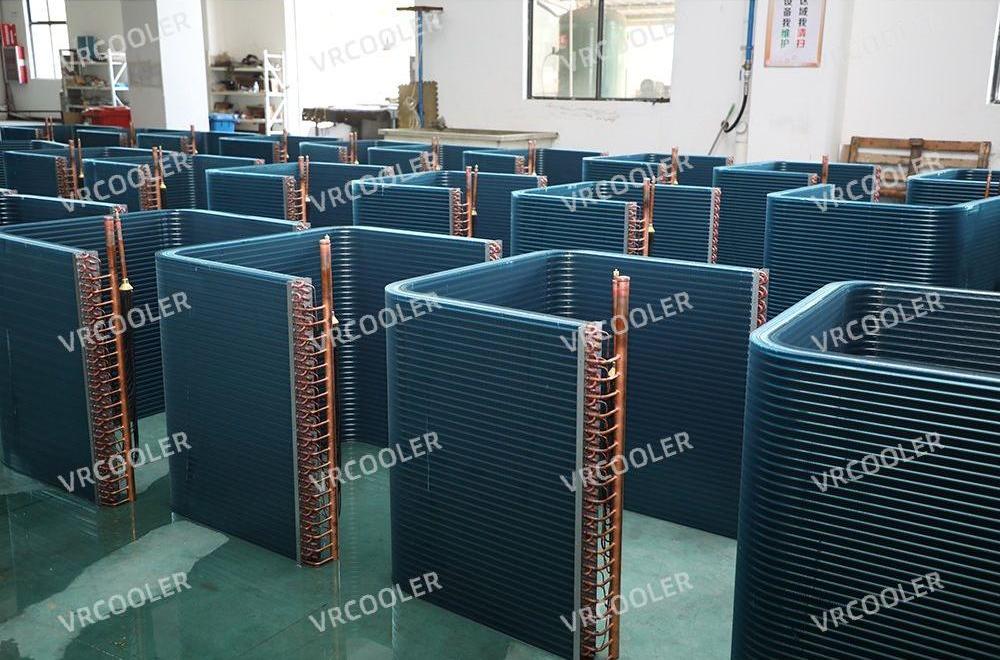

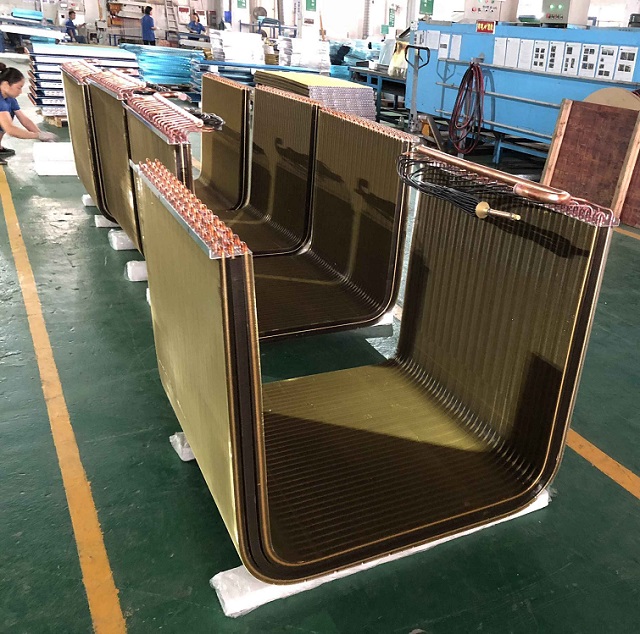

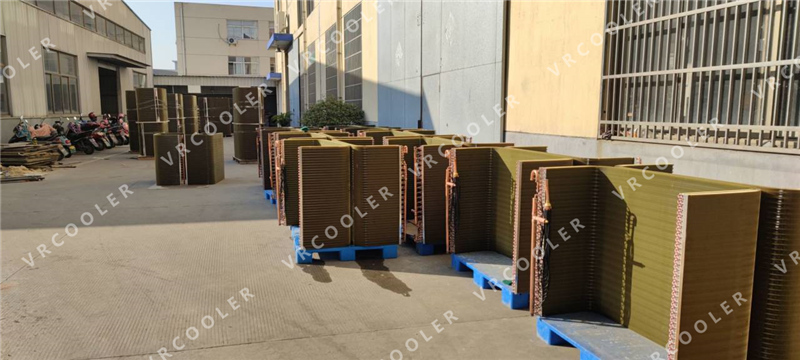

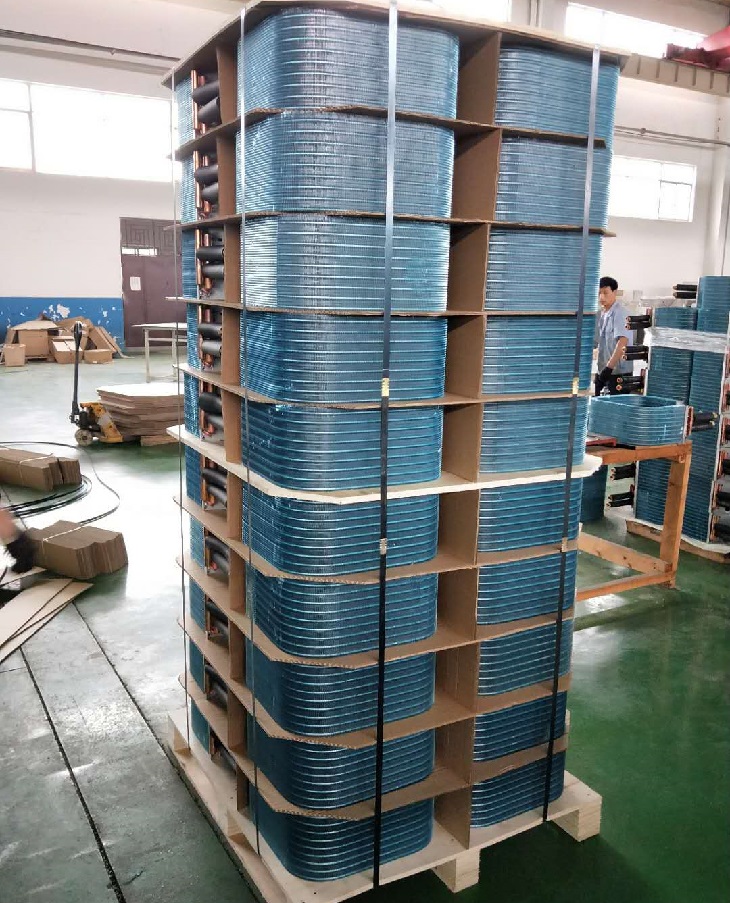

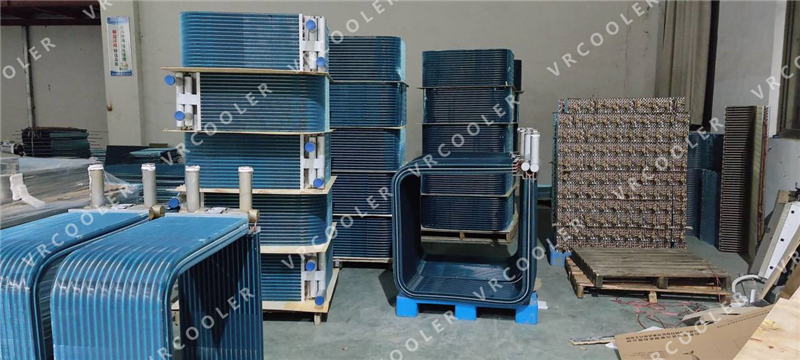

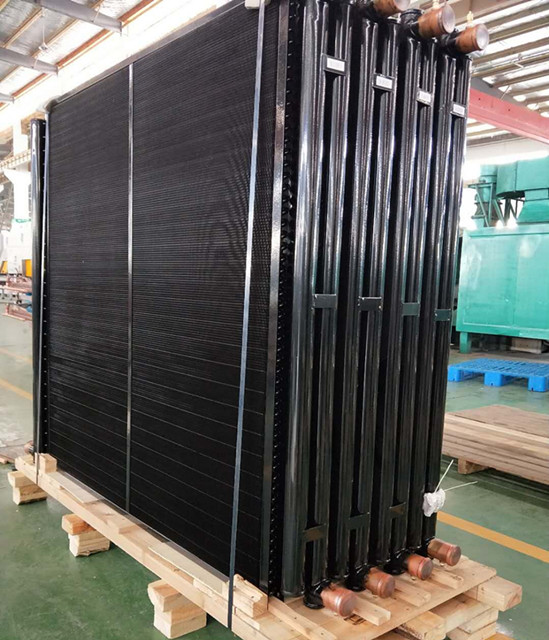

We have customized products for many customers, following are some projects we did before. We can provide designing data and production drawings.
We promise we use the design software sold by a well-known European HVAC software company. Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world. All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Our company specializes in researching, manufacturing and exporting Heat Exchangers, Evaporators, Condensers, air cooler and other heat transfer equipments for the varied industries since 2004.
We are committed to quality products and services to meet our customer's expectations and the needs of industrials. We are dedicated to our mission and goal and we believe in long term business relationship with our customers which is based on integrity, responsiveness and quality.

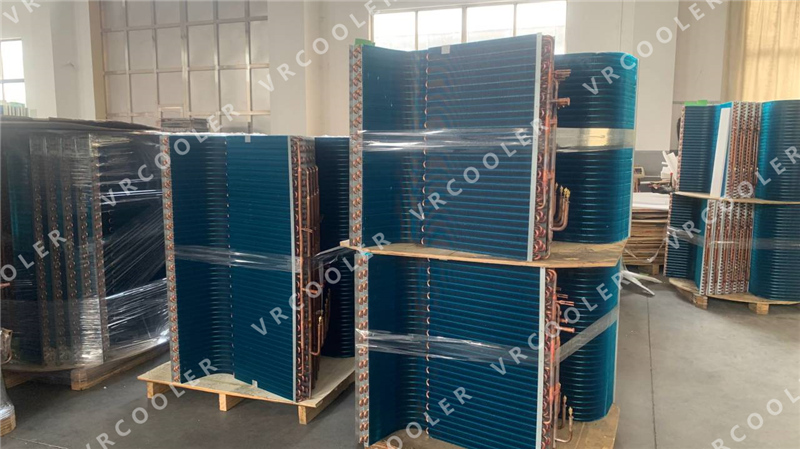

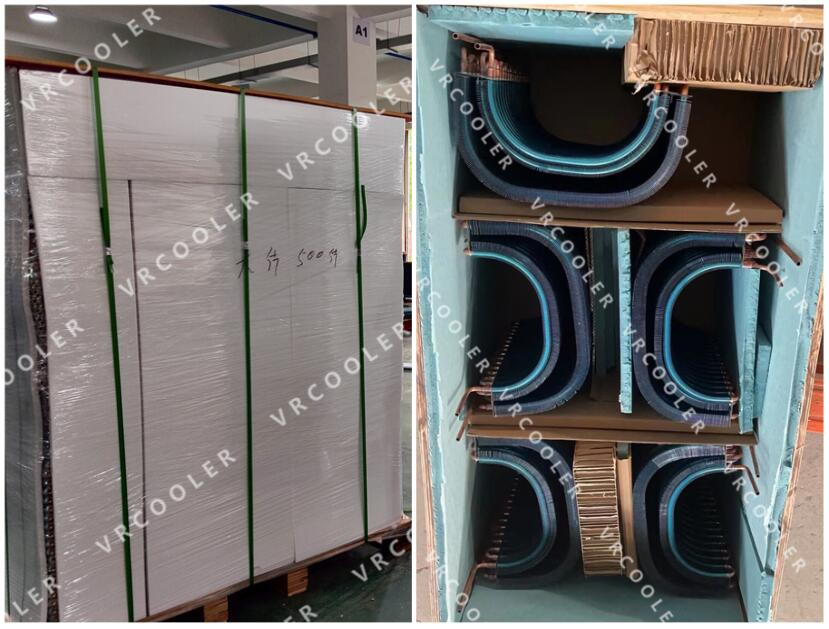

The normal package is wooden box. If export to European countries, the wooden box will be fumigated. If the container is too tight, we will use PE film for packing or pack it according to customers' special requests.
